Introduction

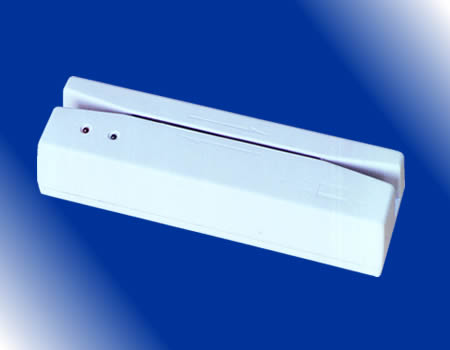

SL-400 series of magcard/ bar code reading machine is specially used in reading information in magcard/ bar code and transmit the information to computers and terminals. The product is also widely used in industries, such as Bank, Stock, commerce.

Function
· custom-built IC supporting pulling card with high speed or low speed
· reading state in sound and right double indicating
· support pulling cards in both directions
· supplying many kinds of interface output modes
· magnetic head deftly installed to reduce pulling hurt  to magnetic bar
· super long life of magnetic head adapting to high-load work
· unique optic design, reading which appeared bar code and hidden bar code are compatible
· automatically identifies many kinds of bar system

Technical Data Parameter
· magcard standard：ISO 7810，7811-1、2、3、4、5
· coding mode：F2F（FM）
· speed of pulling card：10～120cm/s
· life of magnetic head：>60万次  600,000 times
· output interface： imitating XT, AT keyboard format
   　　　　　　         RS-232
· cognizable bar system：Code39
   　　　　　　 　               Code93
   　　　　　　 　               UPC/EAN
   　　　　　　 　               Codabar
   　　　　　　 　               Interleaved 2 of 5
   　　　　　　 　               Code128
   　　　　　　 　               Full ASCⅡ Code39
· power supply：DC+5V　35mA （bar code series≤80MA）
· work circumstance ： work temperature 0℃～+40℃
   　　　　　　                 work humidity 10%～85%RH
